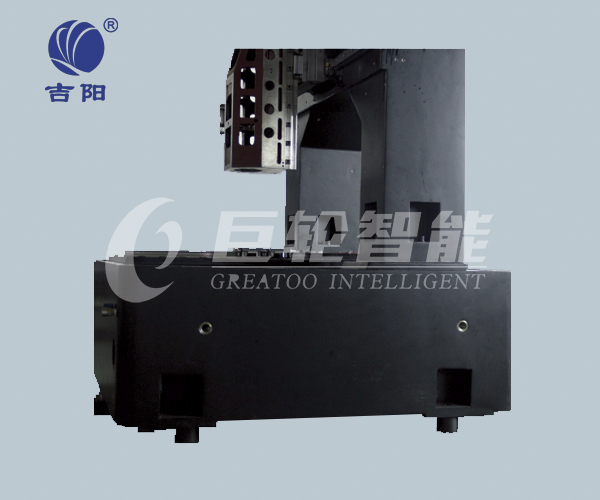

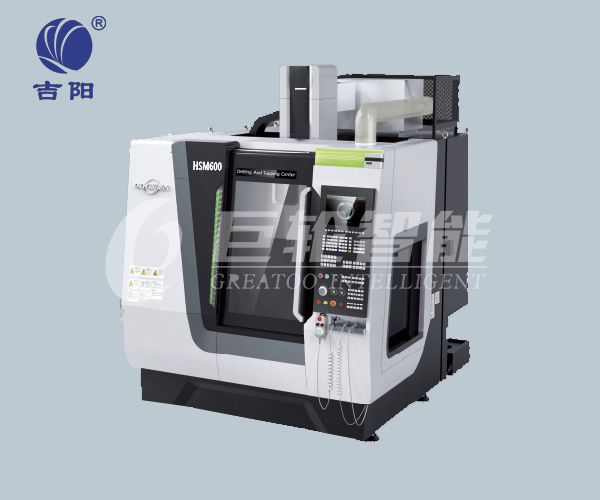

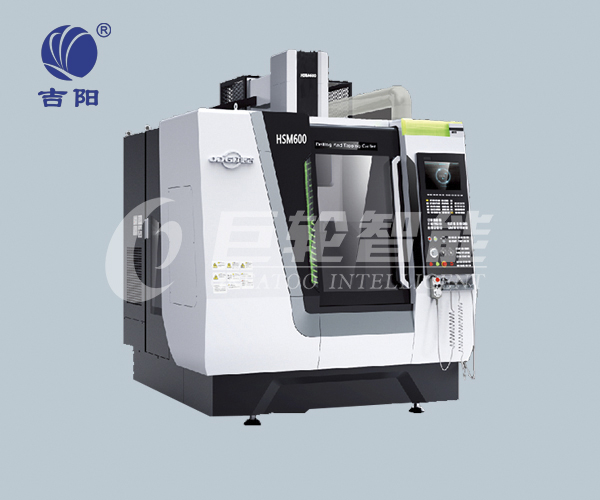

工作臺 /Workbench
|
工作尺寸/Working dimension
|
680x520mm
|
工作臺承重/Table bearing
|
500kg
|
T型槽尺寸/Type T groove size
|
4-14x125 mm x n
|
|
加工范圍/Machining range
|
X軸最大行程/X axis Max stroke
|
650mm
|
Y軸最大行程/Y axis Max stroke
|
520mm
|
Z軸最大行程/Z axis Max stroke
|
320mm
|
|
主軸端面至工作臺距離最大/最小
Spindle end face to the maximum / minimum distance
|
460/140mm(標準)
460/140mm (standard)
|
|
主軸 /Principal axis
|
主軸錐孔/Taper of spindle
|
HSK E40
|
轉速/Speed
|
30000(電主軸Motorized spindle)r/min
|
最大輸出扭矩/Maximum output torque
|
16.3(電主軸Motorized spindle)N · m
|
主電機功率/Main motor power
|
8.5KW(電主軸Motorized spindle)
|
|
刀庫/The knife
|
最大刀具長度/Maximum tool length
|
150mm
|
刀庫形式/Tool magazine form
|
刀臂式刀庫/Cutter arm type cutter
|
刀庫容量/Tool magazine capacity
|
24把
|
最大刀具直徑/Maximum tool diameter
|
60mm(滿刀) /120mm（相鄰空刀）
60mm (full knife) /120mm (adjacent to the empty knife)
|
最大刀具重量/Maximum tool weight
|
3kg
|
換刀時間（刀對刀）/Tool change time (T-T)
|
1.2s
|
|
進給/Feed
|
切削進給速度范圍/Cutting feed speed range
|
1-30000mm/min
|
快速移動速度X/Y/Z軸/Fast moving speed X/Y/Z axis
|
40/40/40m/min
|
|
定位不確定性 /Location uncertainty
|
VDI/DGQ3441-X/Y/Z軸
|
0.01/0.01/0.01mm
|
|
重復定位精度 /Repeated positioning accuracy
|
|
VDI/DGQ3441-X/Y/Z軸
|
0.005/0.005/0.005mm
|
|
|
數控系統/numerical control system
|
西門子/SIEMENS828D-280
|
電氣總?cè)萘?/strong>/Total electric capacity
|
20kVA
|
|
機床輪廓尺寸/Machine tool profile dimensions
|
長/Length
|
1960mm
|
寬/Wide
|
2450mm
|
高/High
|
2680mm
|
|
|
氣源流量/Air flow
|
0.1~0.2M3/min
|
機床總重量/Total weight of machine tool
|
5000kg
|
