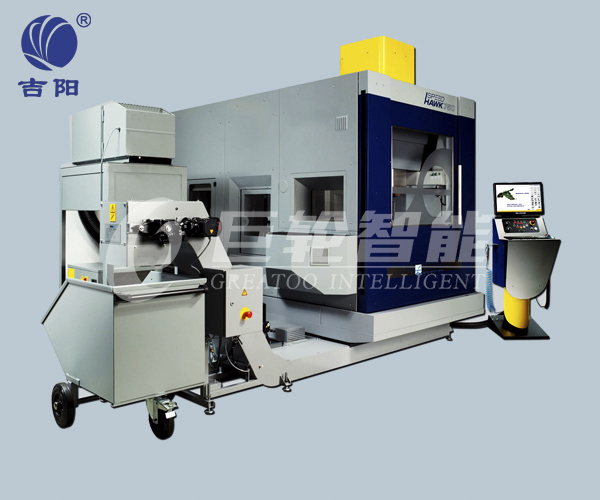

各軸行程/Stroke of each axle
|
X=650mm 、Y=1100mm 、Z=500mm
|
進給率/Feed rate
|
max 30m/min
|
加速度/Acceleration
|
max 15m/s2
|
工作臺夾裝臺面尺寸/Table size of table
|
X=850mm 、Y=650(1300)mm
|
工作臺最大承重/Maximum load bearing
|
每個工作臺2000kg
Each work station2000kg
|
工作臺/Workbench
|
T型槽臺可裝載第四/第五軸上方/Type T tank can be loaded on top of fourth / Fifth
|
T型槽/T type groove
|
5x18H12（每個工作臺）
5x18H12(Each work station)
|
主軸鼻端到工作臺距離最小/最大/Spindle nose to the operating table from the minimum / maximum
|
60/560mm
|
接入電源功率/Power of access
|
32KVA
|
高頻主軸轉速（可選）/High frequency spindle speed (optional)
|
HSK E40：1-42000U/min
HSK E50：1-36000U/min
HSK A63：1-24000U/min
|
主軸功率/Spindle power
|
15KW/17KW/22KW
|
刀庫（可選）/Tool magazine (optional)
|
40/72positions（HSK E40）
32/56positions（HSK E50）
40/24positions（HSK A63）
|
迷你油霧潤滑/Mini oil mist lubrication
|
包括/Include
|
數控系統/Numerical control system
|
Andron 3060/windows XP觸摸屏、PC-NC/雙處理器，電子手輪遠程控制
3060/windows XP Andron touch screen, PC-NC/ dual processor, electronic hand wheel remote control
|
驅動類型/Drive type
|
滾珠絲杠主軸、直連交流伺服電動機、線性測量系統（海德漢）/Screw spindle, direct measurement system of AC servo motor, linear ball (Heidenhain)
|
占地面積/Area covered
|
3520x2170mm HIGH=2850mm
|
機床總重量/Total machine tool
|
12700kg
|
選配/Matching
|
擺動圓臺：A軸+20度/-60度、 C軸60U/min 、工件重量：250kg
Swing round: A axis -120 degrees /+60 and C axis torque motor 60U/min, workpiece weight: 250kg
|
更多選配/More matching
|
激光對刀、自動刀具清洗站、紅外線探頭、三維檢測功能、-在夾狀態測量、石墨吸收裝置、油霧吸收裝置、混濕工、切屑傳送鏈、錯誤信息短信提示、自動化準備
Laser tool setting, automatic tool cleaning station, infrared probe, 3D detection function, in clamping state measurement, graphite absorption device, oil fog absorbing device, wet mixing industry and trade, cutting chip conveyor chain, error messages, SMS tips, automation is ready to
|
