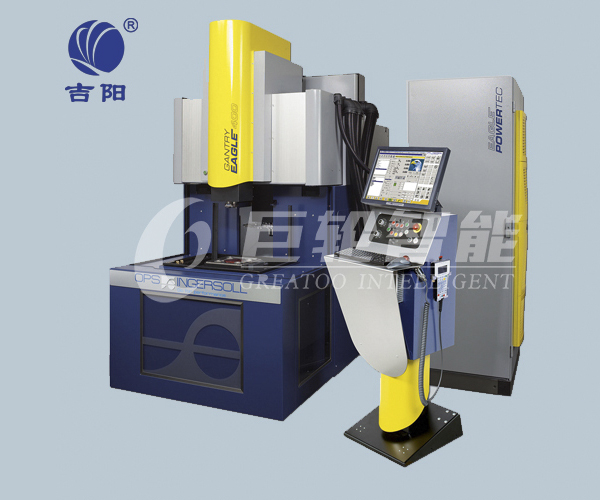

機床/Machine tool
|
機床重量/Weight of machine tool
|
3500kg
|
電源重量/Power supply weight
|
640kg
|
電源功率/Power supply
|
16KVA
|
繼電/Relay
|
32A
|
電壓/頻率/Voltage / frequency
|
400/50
|
|
工作槽/Working groove
|
類型/Type
|
整體升降/Integral lifting
|
工作槽內部尺寸（長x寬x高）/Internal size of working groove (long x width x height)
|
650x500x340mm
|
最大液面高度可編程/自動/Maximum height of the liquid level can be programmed / automatic
|
300mm
|
|
工作頭部/Working head
|
最大工件托盤重量/Maximum weight of workpiece
|
100kg
|
工作臺到安裝版距離最小/最大/Working table to install version distance min / Max
|
135/535mm
|
|
C軸/C axis
|
轉速（可調節）/Speed (adjustable)
|
1-20min
|
最小指令值/Minimum instruction
|
0,001°
|
最大手動電極交換重量/Maximum manual electrode exchange weight
|
50kg
|
最大自動電極交換重量/Maximum automatic electrode exchange weight
|
15kg
|
最大運動慣量/Maximum motion inertia
|
0,4kg/㎡
|
扭矩/Torque
|
-Nm
|
|
工作臺/workbench
|
工作臺尺寸（長x寬）able size (length x width)
|
550x470mm
|
最大工件重量/Maximum weight of workpiece
|
500kg
|
|
行程/Trip
|
X/Y/Z在加工槽內的行程/X/Y/Z stroke in the processing slot
|
420x300x400mm
|
Y（電極交換和裝卸時行程）/Y (electrode exchange and loading and u
|
580mm
|
|
控制系統/Control system
|
PC-NC對話/PC-NC dialogue
|
2x32bit
|
驅動類型/Drive type
|
數字交流伺服電機/Digital AC servo motor
|
XYZ軸移動速度/XYZ axis movement speed
|
Max5000mm/min
|
最大高速抬刀速度/Maximum high speed lift
|
18000mm/min
|
|
工作液箱/Working liquid box
|
濾芯類型/Type of filter element
|
筒（內置）/Cylinder (built in)
|
過濾面積/Filtration area
|
16㎡
|
工作液箱總?cè)萘?Total tank capacity
|
320ltr
|
|
電極交換系統/Electrode exchange system
|
類型/Type
|
旋轉盤/Rotating disk
|
電極庫（可選）/Electrode Bank (optional)
|
20（30）
|
聯合電極庫作為選配/Combined electrode bank as an option
|
|
允許電極重量/Allowable electrode weight
|
|
-單一電極/Single electrode
|
15kg
|
-總體重量/Total weight
|
60kg
|
|
電源/Power Supply
|
類型/Type
|
脈沖形狀自適應控制/Adaptive pulse shape control
|
最大工作電流(選配)/Maximum operating current（optional)
|
60（110）A
|
|
額外特點/Additional features
|
自動中央潤滑/Automatic central lubrication
|
標準配置/Standard configuration
|
冷卻系統、功率/Cooling system, power
|
3.9KW
|
CO2滅火裝置（D1D14497）滅火劑容量/Capacity of CO2 fire extinguishing equipment (D1D14497)
|
6kg
|
